BPZK01 0-20mA 100mm Dia Electronic Pressure Switch Controller

BPZK01 0-20mA 100mm Dia Electronic Pressure Switch Controller
BPZK01 0-20mA 100mm Dia Electronic Pressure Switch Controller BPZK01 0-20mA 100mm Dia Electronic Pressure Switch Controller BPZK01 0-20mA 100mm Dia Electronic Pressure Switch Controller BPZK01 0-20mA 100mm Dia Electronic Pressure Switch Controller BPZK01 0-20mA 100mm Dia Electronic Pressure Switch Controller
বেসিক ইনফরমেশন
সাক্ষ্যদান: ISO9001
ন্যূনতম চাহিদার পরিমাণ: 1
মূল্য: 55
ভালো দাম এখন যোগাযোগ
বিস্তারিত তথ্য
মডেল নং: BPZK01 গঠন: পরিবর্ধক অন্তর্নির্মিত প্রকার
ব্যবহার: নিয়ন্ত্রণ সুইচ আবেদন: বাণিজ্যিক, শিল্প, যানবাহন
বিস্ফোরণ-প্রমাণ প্রকার: অভ্যন্তরীণভাবে নিরাপদ যোগাযোগ: সাধারণত খোলা
যোগাযোগের ধরণ: টাইপ সি যোগাযোগ সনাক্তকরণ পদ্ধতি: পারস্পরিক সম্পর্ক প্রকার
ব্র্যান্ড: হেংটং পরিসর: 0-10kpa~40Mpa
শক্তি: 24VDC/220VAC স্যুইচ: 2-4 পনিট
আউটপুট: 0-20mA/4-20mA পরিবহন প্যাকেজ: শক্ত কাগজ
স্পেসিফিকেশন: ১০ কেপিএ-১০০ এমপিএ ট্রেডমার্ক: হেংটং
উৎপত্তি: চীন এইচএস কোড: 80328100
উৎপাদন ক্ষমতা: 50000PCS/বছর
বিশেষভাবে তুলে ধরা:

100mm electronic pressure switch

,

0-20mA pressure controller

,

industrial pressure transmitter sensor

পণ্যের বর্ণনা

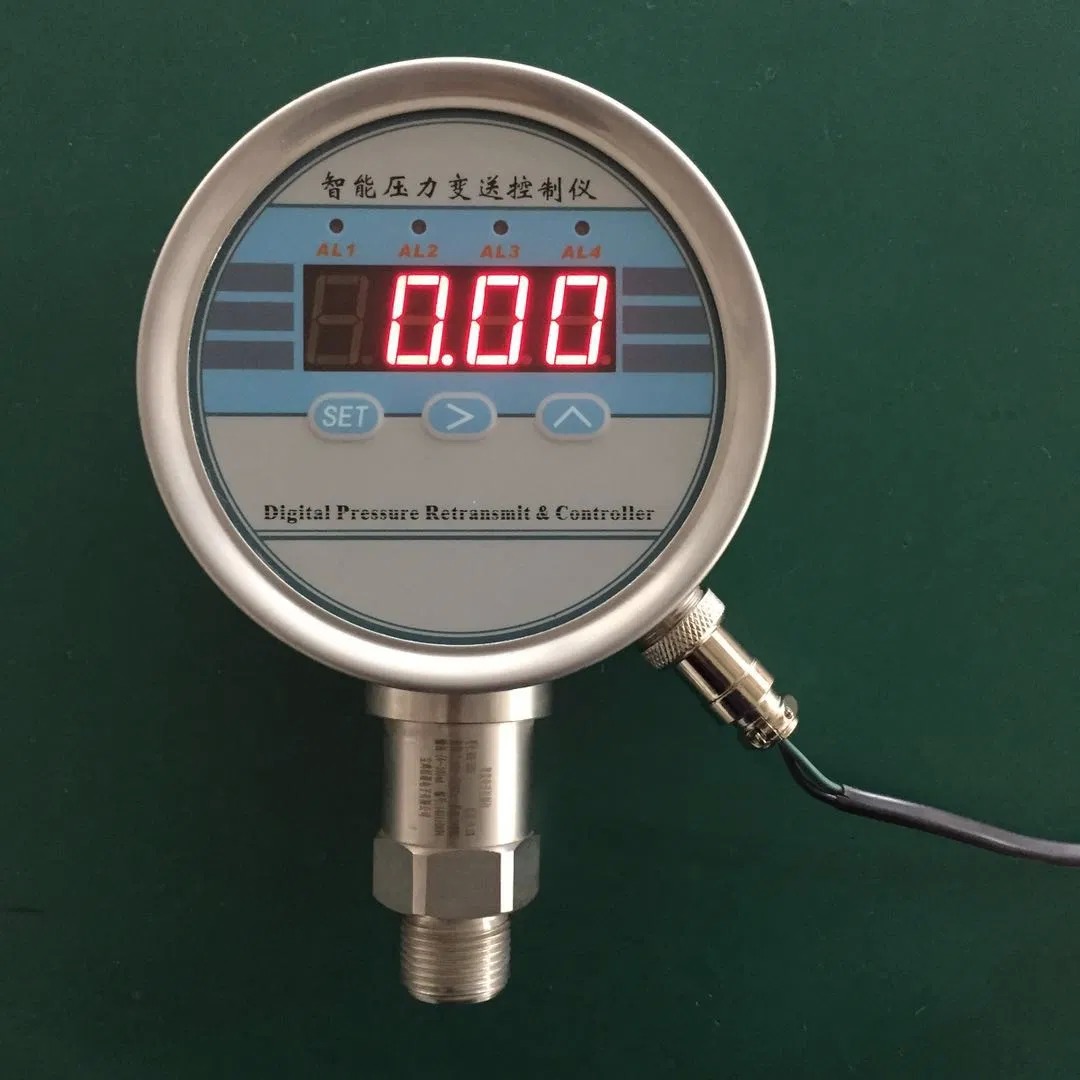

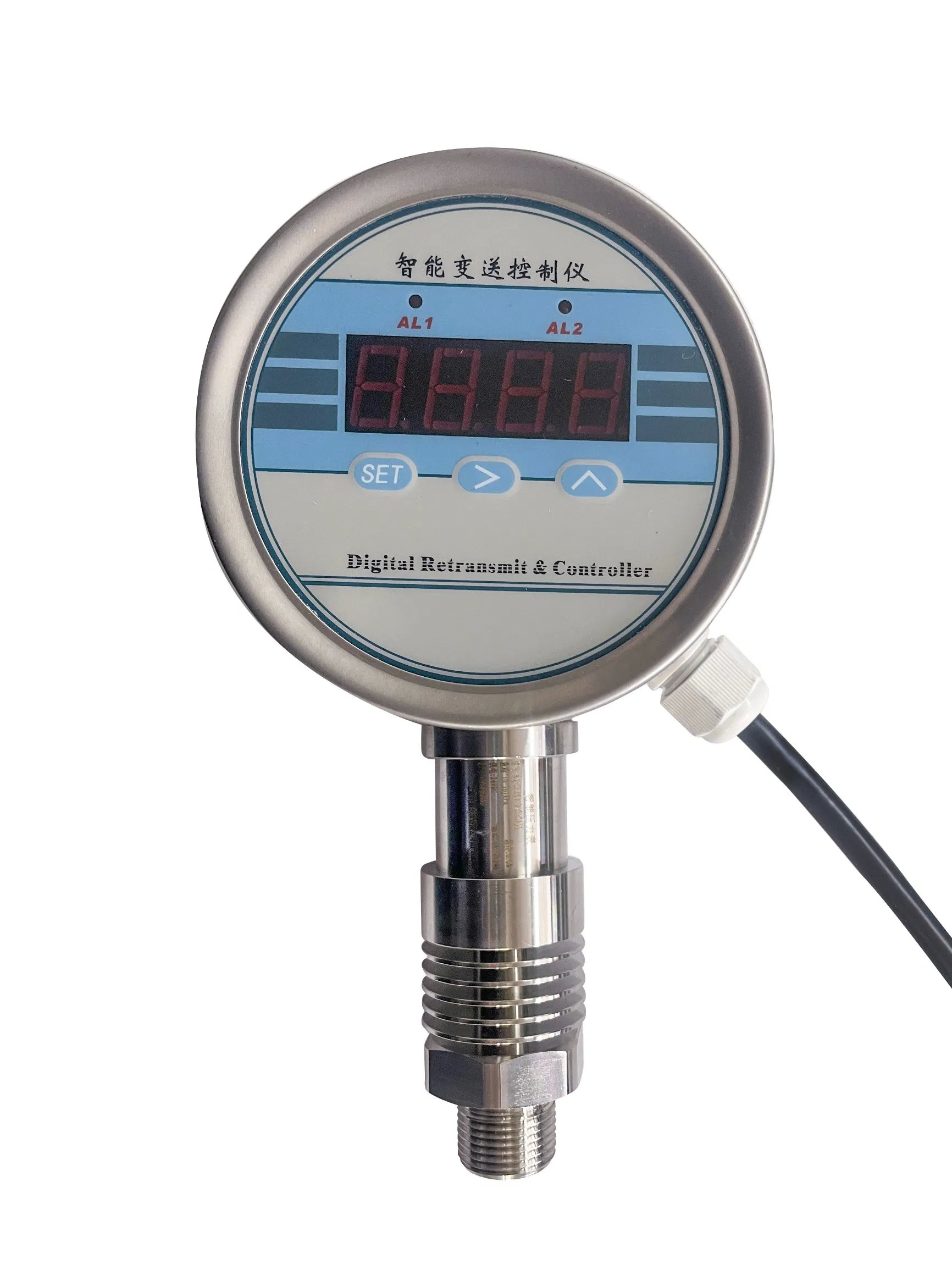

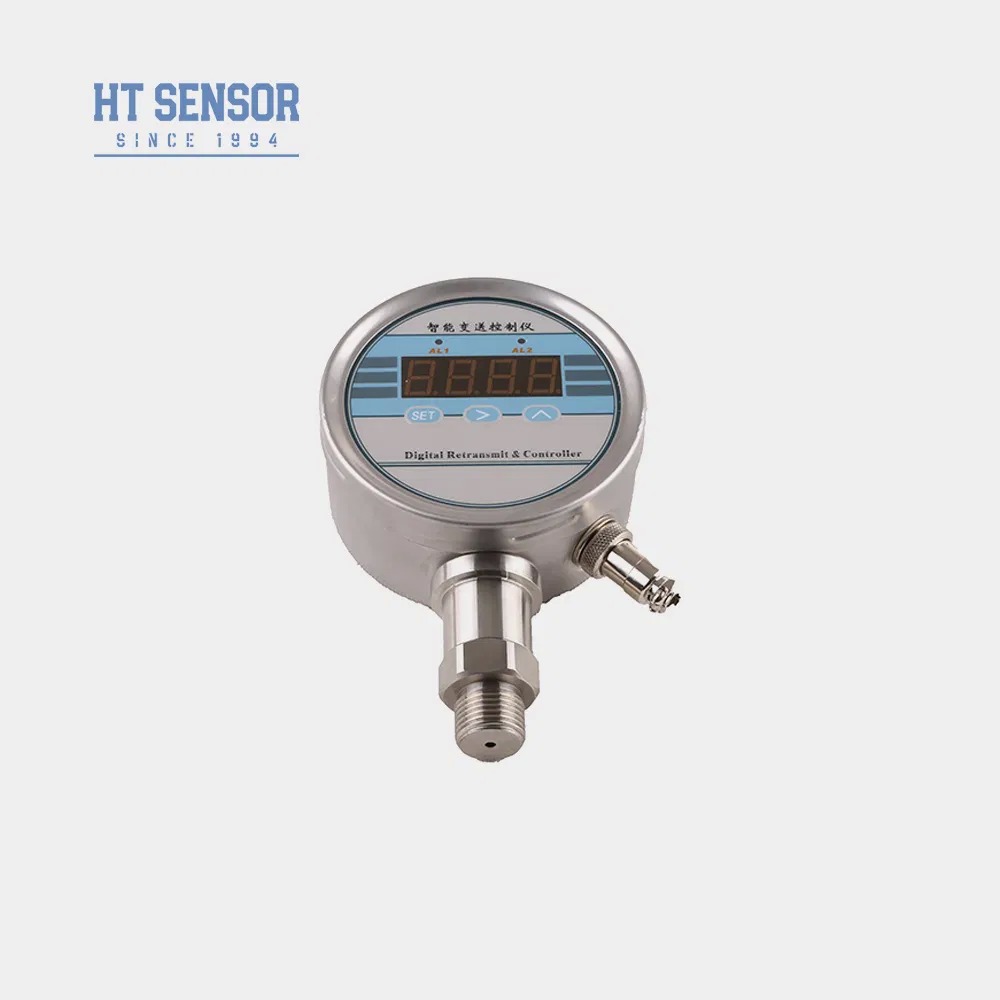

BPZK01 0-20mA 100mm Dia Electronic Pressure Switch Controller
BPZK01 Electronic Pressure Switch

Introduction:
BPK-ZK01 digital pressure/differential pressure gauge  is an all-digital
measurement and control product that integrates pressure/differential pressure measurement, display, point control, and transmission output. It can be directly installed at the pressure measurement point on the site or mounted on the control panel of a test bench. It allows on-site setting of various parameters such as zero value, full scale value, and contact pressure value using the keypad.
BPZK01 0-20mA 100mm Dia Electronic Pressure Switch Controller 0

Product  Features:
  1. Stainless steel structural design with versatile pressure interface options.
  2.  with high-brightness LED pressure display.
  3. Powered  24VDC and 220VAC
  4. Can provide up to two control relay outputs, with the ability to set arbitrary relay values and states for precise and reliable control.
  5. High accuracy.

Applications:
Measurement and control of pressure/differential pressure of fluid media in industries such as hydropower, metallurgy, and chemical engineering, for automatic control applications.

Performance Parameters
Measurement Range -100kPa…0kPa ~ 10kPa…100MPa
0-10KPa~2MPa(Differential Pressure)

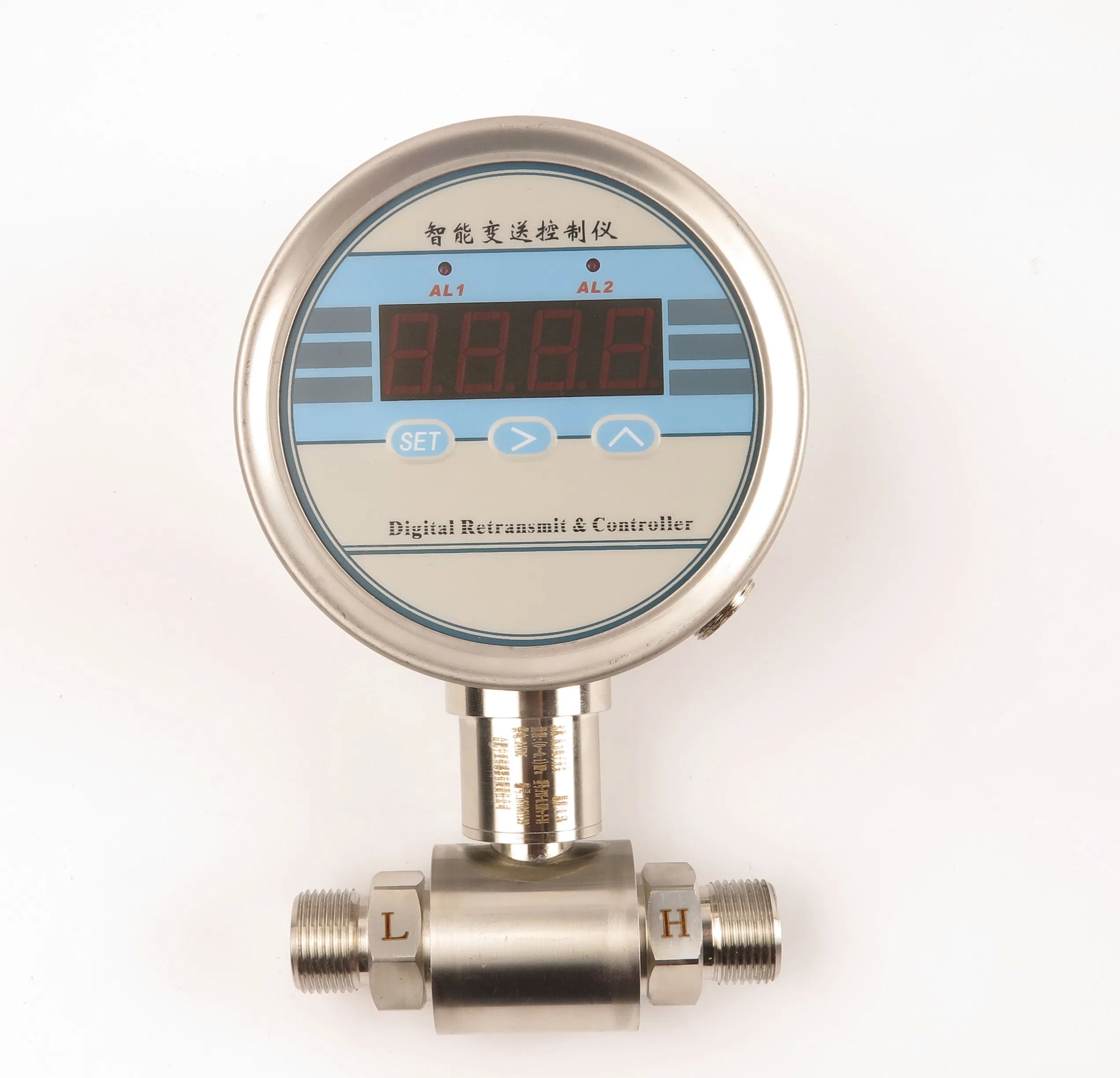

Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure,Differential Pressure
Overload ≤ 1.5 times of the rated range
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Long-Term Stability ±0.3%F.S/year
Zero Point Temperature Drift ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa)
Full Scale Temperature Drift ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa)
Compensation Temperature 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC
Operating Temperature -20ºC~80ºC
Storage Temperature -40ºC~120ºC
Housing Material 1Cr18Ni9Ti
Diaphragm Material 316L
Insulation Resistance 100MΩ 100VDC
Relay Control 1-4 channels of control or electronic switch quantity control
Contact Life Exceeds 100,000 cycles
Display Range -1999~9999
Installation Method vertical axis installation
Explosion-proof Rating Intrinsically Safe
Protection Rating IP65
Weight ~0.5kg
Outline Construction
Dimension BPZK01 0-20mA 100mm Dia Electronic Pressure Switch Controller 1
Output Signal Supply Voltage Output Type
4~20mA / 0-20mA 24VDC or 220VAC 3 wire
1-5VDC /0-5VDC 24VDC or 220VAC 3 wire

BPZK01 0-20mA 100mm Dia Electronic Pressure Switch Controller 2
Ordering tips

1. When selecting the product, please ensure that the measured medium is compatible with the contacting parts of the product.
2. When placing an order, please specify the power supply, accuracy grade, number of control points.
3. The measurement range of the flat diaphragm pressure controller is 0~35KPa...20MPa.
4. For users selecting differential pressure measurement, pay attention to the relationship between the differential pressure range and the allowable overpressure and maximum pressure of the high and low pressure chambers, and ensure it aligns with the requirements of the field application. To ensure the safe and reliable operation of the product, it is recommended to install a three-valve manifold between the measuring point and the transmitter.
5. To ensure the reliable operation of the product, it is recommended to install lightning protection devices at the site and ensure that the product and power supply are reliably grounded. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic interference, and radio frequency interference, please inform our company and specify them in the order.
BPZK01 0-20mA 100mm Dia Electronic Pressure Switch Controller 3BPZK01 0-20mA 100mm Dia Electronic Pressure Switch Controller 4BPZK01 0-20mA 100mm Dia Electronic Pressure Switch Controller 5BPZK01 0-20mA 100mm Dia Electronic Pressure Switch Controller 6BPZK01 0-20mA 100mm Dia Electronic Pressure Switch Controller 7BPZK01 0-20mA 100mm Dia Electronic Pressure Switch Controller 8

company
BPZK01 0-20mA 100mm Dia Electronic Pressure Switch Controller 9
Q&A
1.Q: What are the features of your pressure sensor transmitters?
   A: High precision, durability, and excellent performance. Customization available.

2.Q: Can I customize special specifications?
   A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service

3.Q: What is your production capacity?
    A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling
.
4.Q: What's the typical delivery period?
    A: 5~8 working day for standard models. Customized products may vary.

5.Q: How are the products priced? Any discounts?
    A: Competitive pricing with discounts for bulk orders or long-term partners
.
6.Q: What is the warranty of your products? And after-sales service?
    A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote          instruction by PC network is always available.
