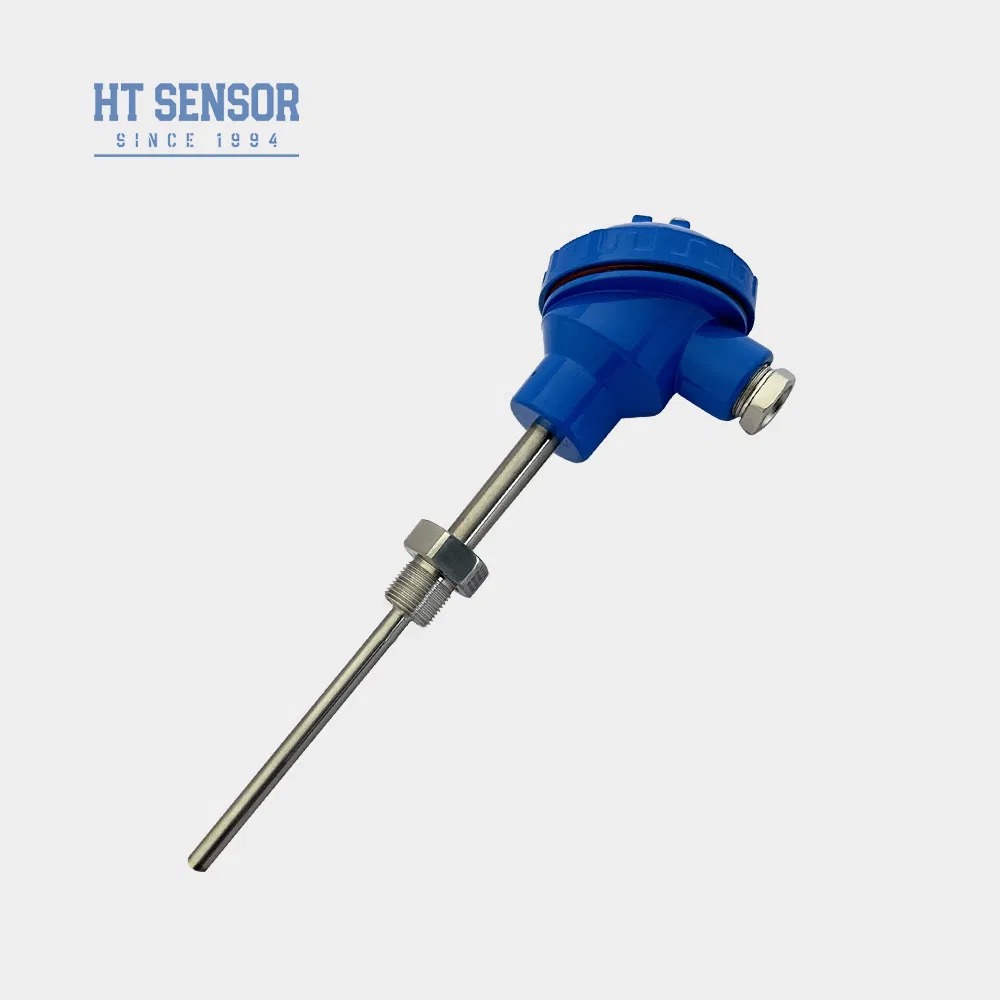

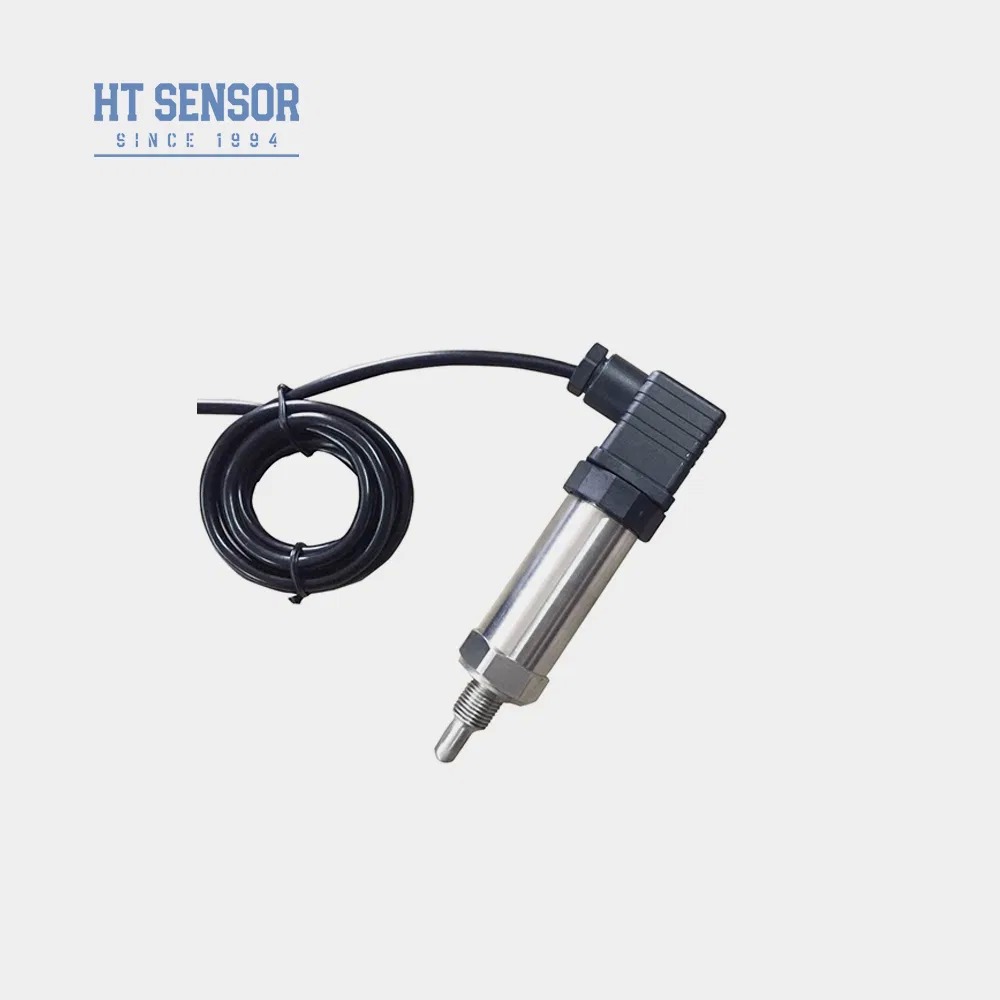

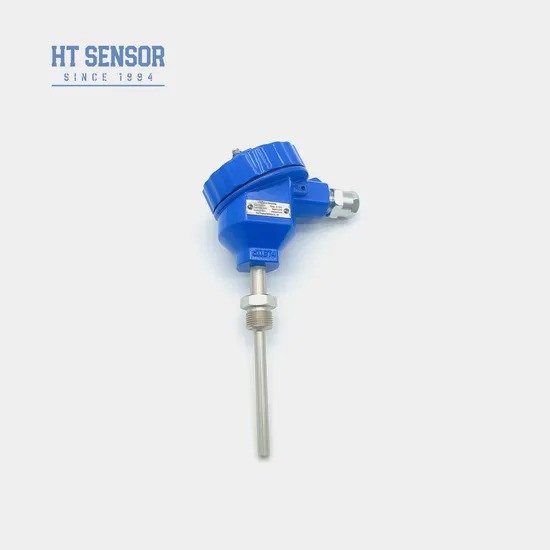

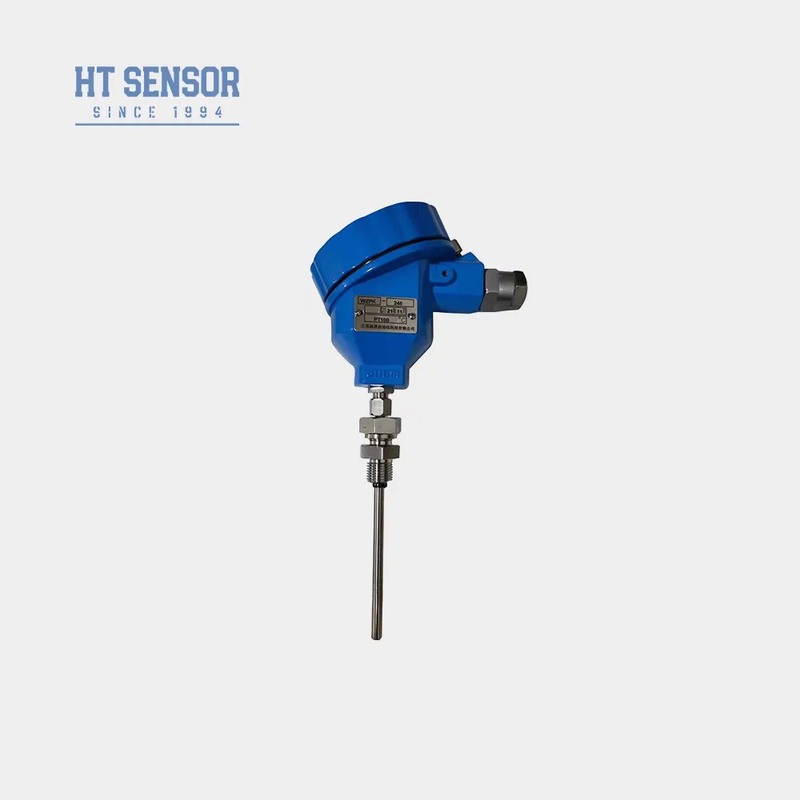

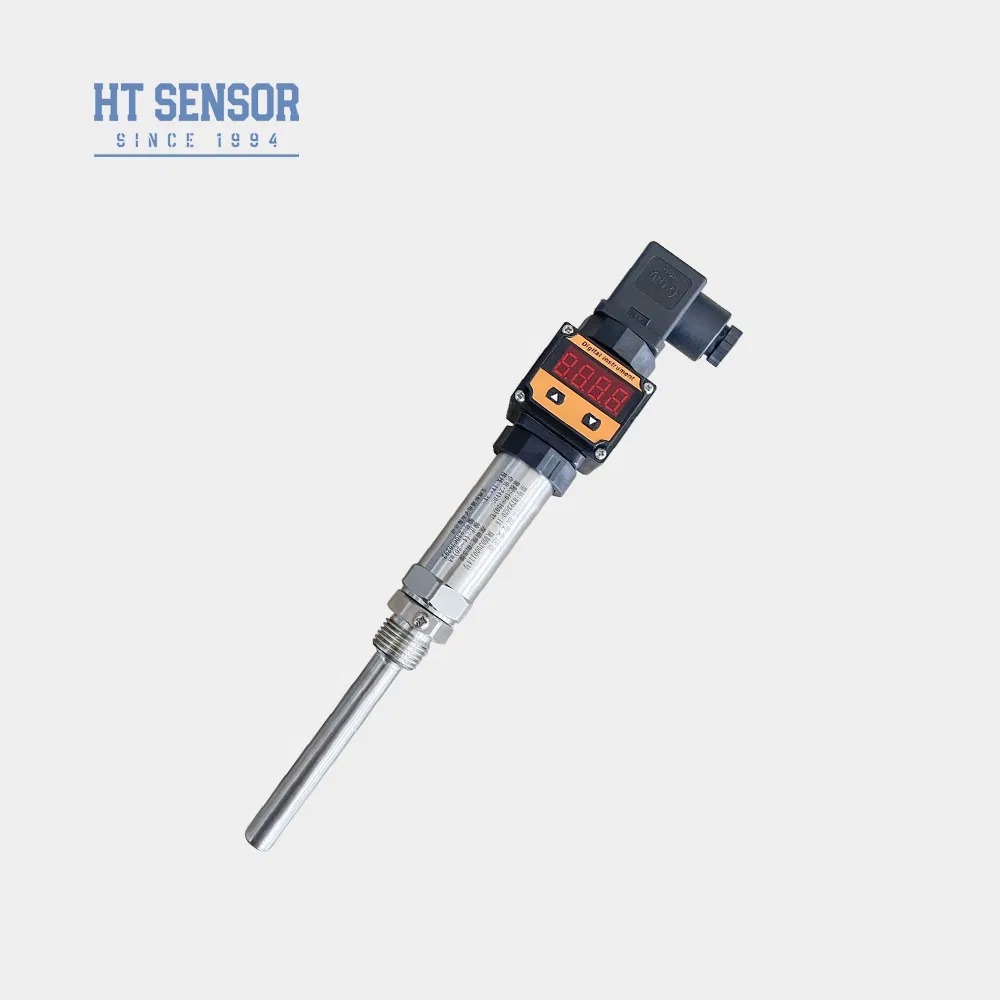

Baoji BT93420 Temperature Indicator Sensor Transmitter PT100 or 4-20mA Temperature Sensor

Baoji BT93420 Temperature Indicator Sensor Transmitter PT100 or 4-20mA Temperature Sensor
Baoji BT93420 Temperature Indicator Sensor Transmitter PT100 or 4-20mA Temperature Sensor Baoji BT93420 Temperature Indicator Sensor Transmitter PT100 or 4-20mA Temperature Sensor Baoji BT93420 Temperature Indicator Sensor Transmitter PT100 or 4-20mA Temperature Sensor Baoji BT93420 Temperature Indicator Sensor Transmitter PT100 or 4-20mA Temperature Sensor Baoji BT93420 Temperature Indicator Sensor Transmitter PT100 or 4-20mA Temperature Sensor
বেসিক ইনফরমেশন
সাক্ষ্যদান: No
ন্যূনতম চাহিদার পরিমাণ: 1
মূল্য: 30
ভালো দাম এখন যোগাযোগ
বিস্তারিত তথ্য
মডেল নং: বিটিআইবিএন যোগাযোগ: যোগাযোগ
আউটপুট সংকেত প্রকার: এনালগ টাইপ উত্পাদন প্রক্রিয়া: স্বাভাবিক ওয়্যারওয়ান
উপাদান: স্টেইনলেস স্টীল পরিমাপ মাধ্যম: তাপমাত্রা
আইপি রেটিং: IP65 কাস্টমাইজড: কাস্টমাইজড
তাপমাত্রা: ওএম পিটি 100: ক
পাইপ উপাদান: 304S.S আউটপুট: 4-20mA বা pt100
পরিবহন প্যাকেজ: শক্ত কাগজ স্পেসিফিকেশন: পিসি
ট্রেডমার্ক: হেংটং উৎপত্তি: চীন
এইচএস কোড: 9032100000
বিশেষভাবে তুলে ধরা:

PT100 temperature sensor transmitter

,

4-20mA temperature sensor indicator

,

BT93420 temperature sensor with warranty

পণ্যের বর্ণনা

Baoji BT93420 Temperature Indicator sensor Transmitter
BT93420 Temperature Indicator Transmitter

Introduction:
BT93420 temperature indicator transmitter adopts a dedicated temperature module, which can perform linear correction on various types of thermocouples and resistance temperature detectors (RTDs) and output standard analog signals. It features high accuracy, good stability, strong anti-interference capability, water resistance, explosion-proof design, high temperature resistance, and shock resistance. It can be integrated with control systems to enable automated temperature control and monitoring
Baoji BT93420 Temperature Indicator Sensor Transmitter PT100 or 4-20mA Temperature Sensor 0
Baoji BT93420 Temperature Indicator Sensor Transmitter PT100 or 4-20mA Temperature Sensor 1
Baoji BT93420 Temperature Indicator Sensor Transmitter PT100 or 4-20mA Temperature Sensor 2


Product  Features:
  1. Full stainless steel structure, good corrosion resistance
  2. Analog output and digital output are both available for selection
  3. Terminal box, 2088 LCD, or LED display are available for selection
Applications:
  1. Monitor the temperature of generators, transformers, cables, and other critical equipment.
  2. Industrial Automation.
  3. Temperature measurement of various gases or liquids in pipelines in industries such as petroleum, chemical, power, and hydrology.
Performance Parameters
Measurement Range -55~1200ºC
Accuracy @ 25ºC ±0.5% (Typ.)   ±1% (Max.)
Repeatability ±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis ±0.03% (Typ.)  ±0.05%FS (Max.)
Long-Term Stability ±0.2%F.S/year (Max.)
Operating Temperature -30~80ºC
Storage Temperature -40~100ºC
Housing Material 1Cr18Ni9Ti
Diaphragm Material 316L Stainless Steel
Insulation Resistance >=100MΩ@100VDC
Maximum temperature 120% of the rated temperature range
Protection Rating IP65
Weight ~0.5Kg
Outline Construction
Terminal Box Baoji BT93420 Temperature Indicator Sensor Transmitter PT100 or 4-20mA Temperature Sensor 3

Order Guide
BT93420 Temperature Indicator Transmitter
  Code Outline Construction
I Blue Terminal Box
II 2088 housing
III 2088+LED
IIIA 3051+LED
  Measurement Range -55~1200ºC
  Code Power Supply
D1 24VDC
D2 Other
  Code Output Signal
S1 4~20mADC S4 0~10mADC
S2 1~5VDC S5 0~20mADC
S3 0~5VDC S6 0~10VDC
  Code Pressure Connection
J1 M27X2 Male
J2 Other
  Code Insertion depth
L Actual insertion depth
