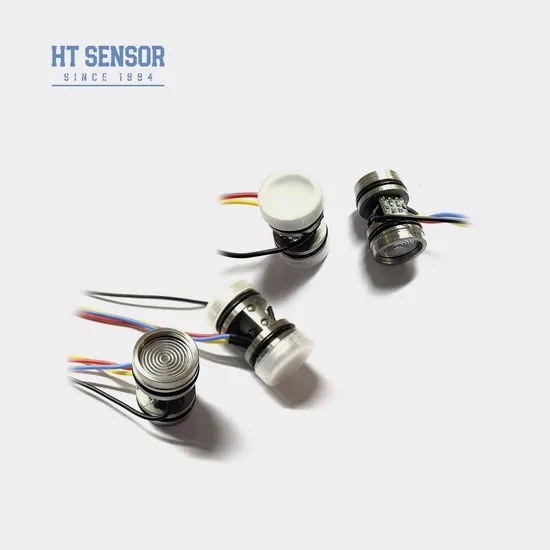

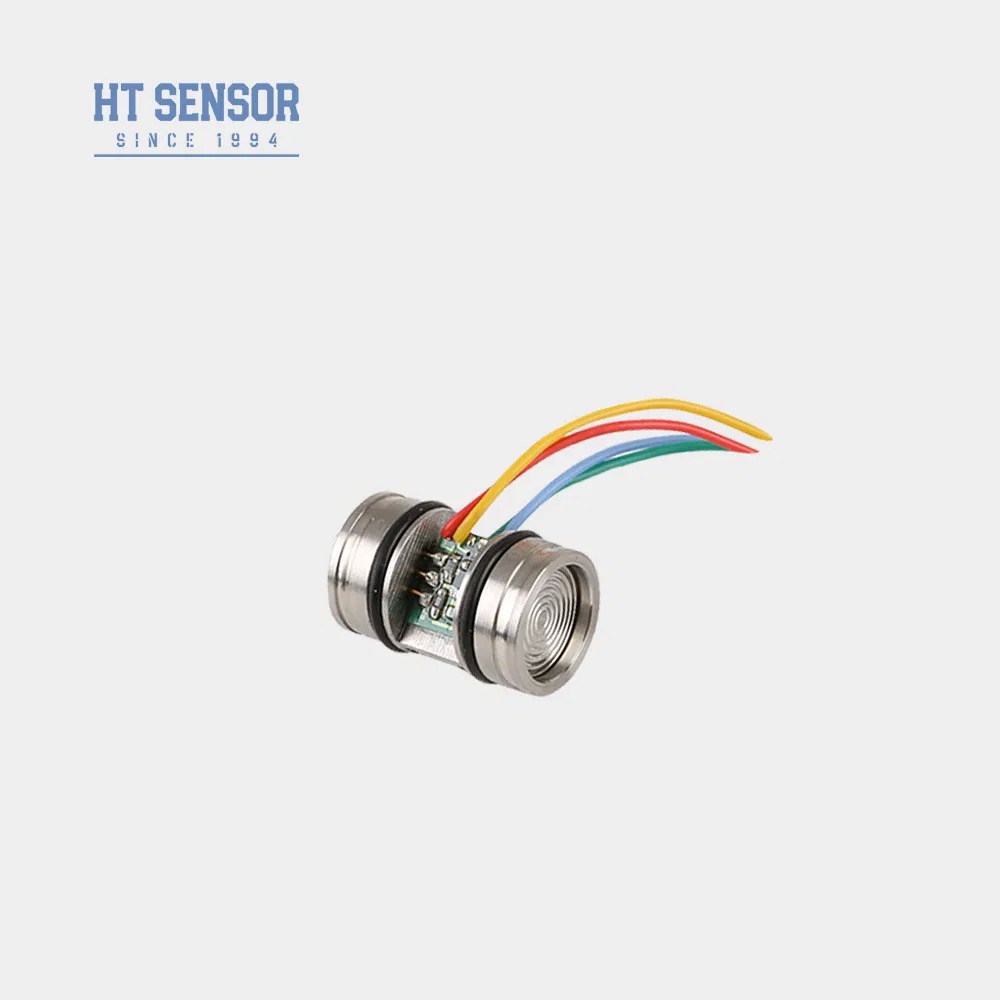

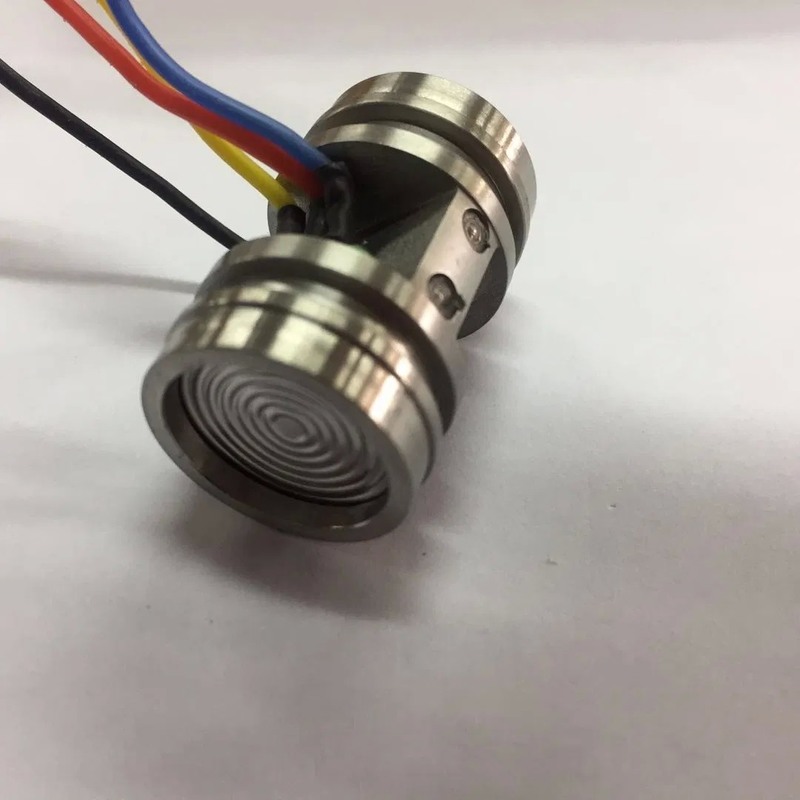

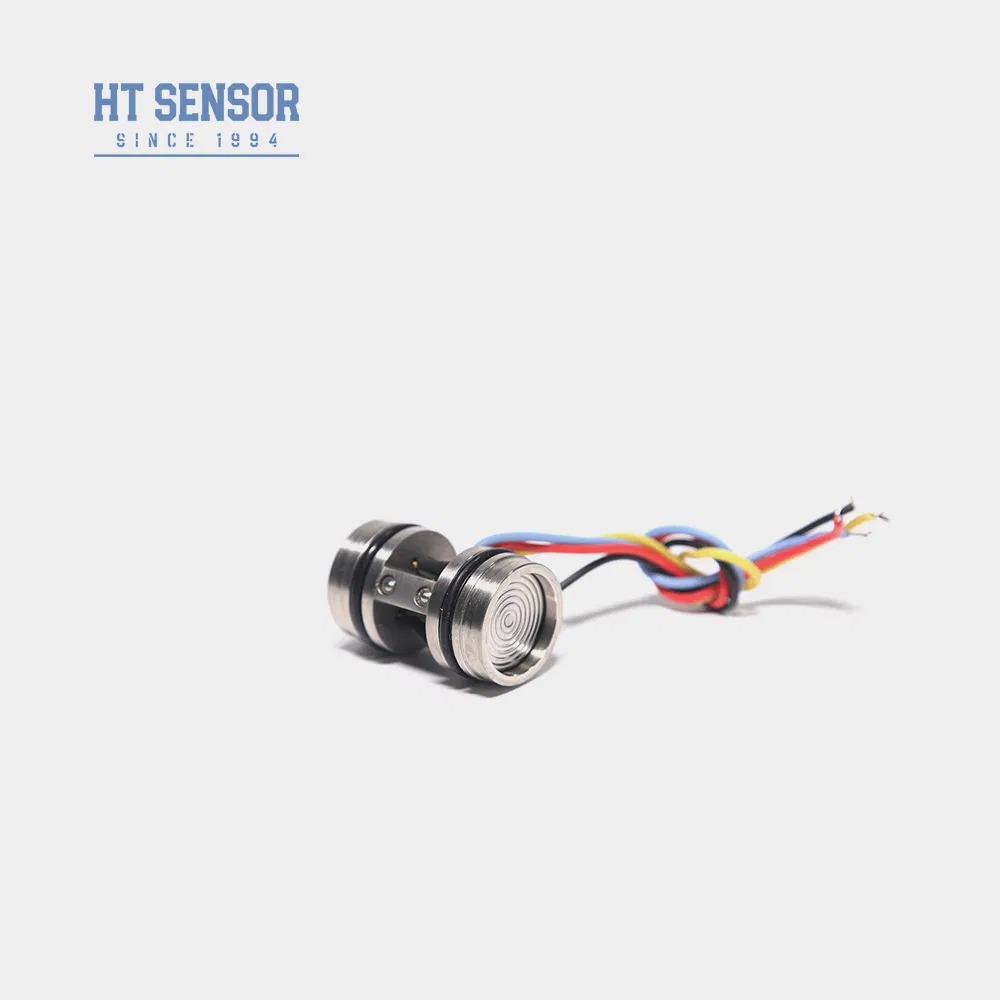

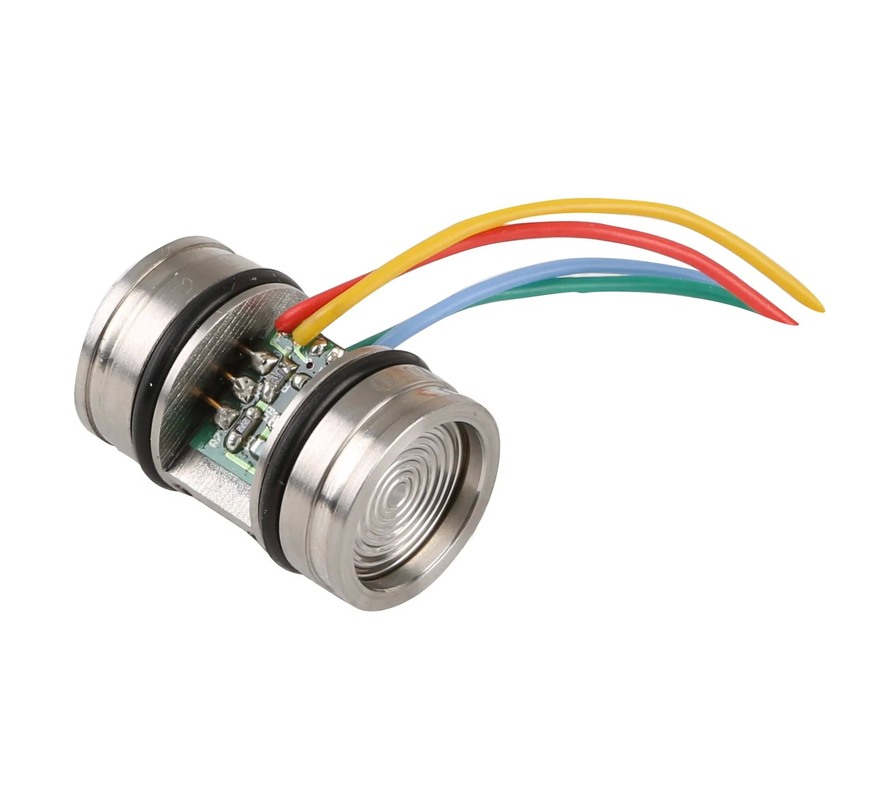

Baoji Hengtong Ht20V Differential Piezoresistive Diffused Silicon Pressure Sensor

Baoji Hengtong Ht20V Differential Piezoresistive Diffused Silicon Pressure Sensor
Baoji Hengtong Ht20V Differential Piezoresistive Diffused Silicon Pressure Sensor Baoji Hengtong Ht20V Differential Piezoresistive Diffused Silicon Pressure Sensor Baoji Hengtong Ht20V Differential Piezoresistive Diffused Silicon Pressure Sensor Baoji Hengtong Ht20V Differential Piezoresistive Diffused Silicon Pressure Sensor Baoji Hengtong Ht20V Differential Piezoresistive Diffused Silicon Pressure Sensor
বেসিক ইনফরমেশন
সাক্ষ্যদান: RoHS
ন্যূনতম চাহিদার পরিমাণ: 5
মূল্য: 40
ভালো দাম এখন যোগাযোগ
বিস্তারিত তথ্য
মডেল নং: HT20V জন্য: বিচ্ছুরিত সিলিকন প্রেসার ট্রান্সমিটার
আউটপুট সংকেত প্রকার: এনালগ টাইপ উত্পাদন প্রক্রিয়া: ইন্টিগ্রেশন
উপাদান: স্টেইনলেস স্টীল থ্রেড টাইপ: না
তারের ধরন: ফোর-ওয়্যার পরিমাপ মাধ্যম: গ্যাস এবং তরল
আইপি রেটিং: IP65 কাস্টমাইজড: কাস্টমাইজড
শক্তি: 5-10 ভিডিসি আউটপুট: এমভি
চাপের ধরণ: ডিফারেনশিয়াল চাপ দৈর্ঘ্য: 29.6 মিমি
পরিবহন প্যাকেজ: শক্ত কাগজ স্পেসিফিকেশন: 29.5 মিমি
ট্রেডমার্ক: হেংটং উৎপত্তি: চীন
এইচএস কোড: 9026209090 উৎপাদন ক্ষমতা: 50000PCS/বছর
বিশেষভাবে তুলে ধরা:

HT20V differential pressure sensor

,

piezoresistive silicon pressure transmitter

,

diffused silicon pressure sensor

পণ্যের বর্ণনা

Baoji Hengtong HT20V Differential Piezoresistive Diffused Silicon Pressure Sensor

Introduction:
HT20V is a differential pressure sensor utilizing a highly stable diffused silicon element as its core. Encased in a durable 316L stainless steel housing, the sensor operates with exceptional reliability. Pressure transmission occurs through a stainless steel diaphragm and a sealed silicon oil, ensuring precise measurements by the sensitive chip. The sensitive chip remains isolated from direct contact with the measured medium, establishing a fully solid-state structure for accurate differential pressure measurement. Consequently, this versatile product is suitable for diverse applications that demand reliable and precise differential pressure measurement
Product  Features:
  1. Stable and reliable performance
  2. High resistance to static pressure
  3. Cost-effective
Applications:
  1. Differential pressure detectiony
  2. Pressure calibration instruments
  3. Liquid level measurement
Electrical performance:
  1. Power Supply: ≤10VDC
  2. Common Mode Voltage Output: 50% of the input (typical)
  3. Input Impedance:4KΩ~20KΩ
  4. Output Impedance:2.5KΩ~6KΩ
  5. Electrical Connection:100mm high-temperature wire.
Performance Parameters:
Measurement Range 10KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa
  Typ Max Unit
Linearity   ±0.15 ±0.3 %F.S
Repeatability  0.05 0.1 %F.S
Hysteresis    0.05 0.1 %F.S
Zero Offset Output   0±1 0±2 mV
Full Scale Output   ≤20KPa 50±1 50±2 mV
≥35kPa 100±1 100±2 mV
Zero Offset Temp. Drift ≤20KPa ±1 ±2.5 %F.S
≥35kPa ±0.8 ±1.5 %F.S
Full Scale Temp. Drift ≤20KPa ±1 ±2 %F.S
≥35kPa ±0.8 ±1.5 %F.S
Compensated Temp. ≤20KPa 0~50 ºC
≥35kPa 0~70 ºC
Operating Temperature   -20~80 ºC
Storage Temperature  -40~125 ºC
Allowable Overload Take the smaller value between 3 times the full scale or 4MPa
Burst Pressure 5X the full scale
Long-term Stability 0.2 %   F.S/Year
Diaphragm Material 316L
Insulation Resistance ≥200MΩ 100VDC
Vibration No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock 100g,11ms
Response Time ≤1ms
O-ring Seal Nitrile rubber or Fluoro rubber
Filling Medium Silicon Oil
Weight ~45g
The parameters are tested under the following conditions: Constant voltage of 10V and ambient temperature of 25ºC

Baoji Hengtong Ht20V Differential Piezoresistive Diffused Silicon Pressure Sensor 0
Baoji Hengtong Ht20V Differential Piezoresistive Diffused Silicon Pressure Sensor 1

Outline Construction
Dimension Baoji Hengtong Ht20V Differential Piezoresistive Diffused Silicon Pressure Sensor 2
Notes:The outgoing end is the positive terminal. If there are any changes in the wire colors, please refer to the label attached to the sensor  for accurate information

Electrical connection and compensation

Baoji Hengtong Ht20V Differential Piezoresistive Diffused Silicon Pressure Sensor 3


Selection Examples
Baoji Hengtong Ht20V Differential Piezoresistive Diffused Silicon Pressure Sensor 4
Ordering tips
1. Pay attention to the fit between the core size and the transmitter housing during assembly to achieve the
     required airtightness
2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when      placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.
5. Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into          the core negative pressure chamber.
6. If there are any changes to the pin leads, follow the label on the actual core for reference.

company


Baoji Hengtong Ht20V Differential Piezoresistive Diffused Silicon Pressure Sensor 5
Q&A

1.Q: What are the features of your pressure sensor transmitters?
   A: High precision, durability, and excellent performance. Customization available.

2.Q: Can I customize special specifications?
   A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service

3.Q: What is your production capacity?
    A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling
.
4.Q: What's the typical delivery period?
    A: 5~8 working day for standard models. Customized products may vary.

5.Q: How are the products priced? Any discounts?
    A: Competitive pricing with discounts for bulk orders or long-term partners
.
6.Q: What is the warranty of your products? And after-sales service?
    A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote          instruction by PC network is always available.
