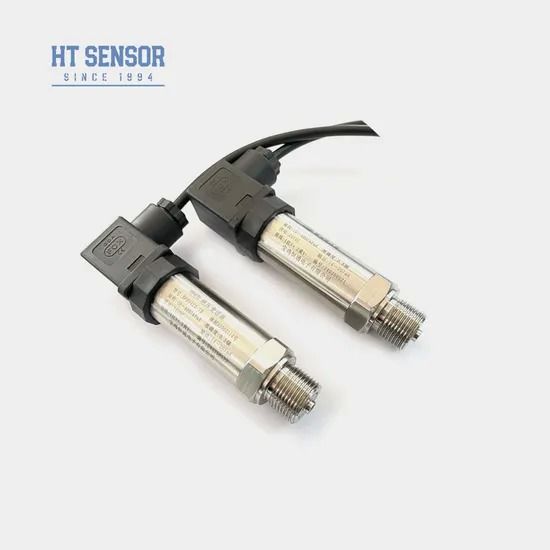

BPHT24-IX Pressure Transmitter Sensor 0.5G Accuracy IP65

The BPHT24IX pressure transmitter utilizes the HT series flush diaphragm silicon pressure-resistance isolation oil-filled core as the signal measuring element. The signal processing circuit is located inside a stainless steel housing, converting the sensor signal into a standard output signal. This pressure transmitter is primarily used in places where high sanitary conditions are required, ensuring reliable and accurate pressure measurements in hygienic environments.

• Various pressure interface options
• Designed for hygienic applications to prevent medium scaling
• High accuracy with a fully stainless steel structure
• Easy to clean and maintain

• Suitable for measuring non-corrosive gases and liquids with 316L
• Ideal for environmental protection and chemical industries
• Used in the marine and aviation industries
• Well-suited for use in the medical, biopharmaceutical, and food hygiene industries

• Ensure the medium to be measured is compatible with the product's contact parts
• Note that explosion-proof type products do not include digital display heads
• For transmitters with LCD/LED display, power supply should not be lower than 20VDC
• Install lightning protection devices and ensure proper grounding for reliable operation
• Fluoro rubber O-ring rated for -20ºC to 250ºC; choose EPDM for temperatures below -20ºC
• Default cable length is 1.5m (polyethylene); specify alternative materials if needed
• Inform about special requirements (vibration, impact, EMI/RFI) when ordering
